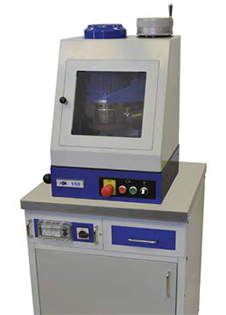

Sample Grinder HK150EXS


Manual pendulum grinder with steel cabinet and integrated spark trap and dust exhauster.

  • Clean, powerful sample grinding system with stone – ready to go
  • Floor standing machine, dustproof, covered working place, halogen spotlight
  • Steel cabinet with switch board, dust trap, exhauster and drawer
  • Reproducible flat surface, easily operated pendulum arm in taper bearings
  • Simple and reliable machine construction
  • Specially suitable for hard materials, like white cast irons
  • Adaptable to various qualities by special stone cup wheels
  • Vertical moving of grinding head by handwheel with 0.1 mm scale

Technical data

Grinder motor 3 x 400 V/50 Hz, 1.1 kW (three phases, each 230V) 1 x 230 V/50 Hz 3 x 220 V/60 Hz (USA/Canada)
Instrument dimensions Grinder 400 x 400 x 680 mm, cabinet 600 x 600 x 870 mm
Mass Grinder approx. 100 kg, cabinet approx. 50 kg
Revolution speed 2800 rpm/3440 rpm
Grinding stone 150 x 80 x 32 mm
Grinding height min. 4 mm, max. 90 mm
Water outlet 1 inch
Lighting 12 V/20 W halogen
