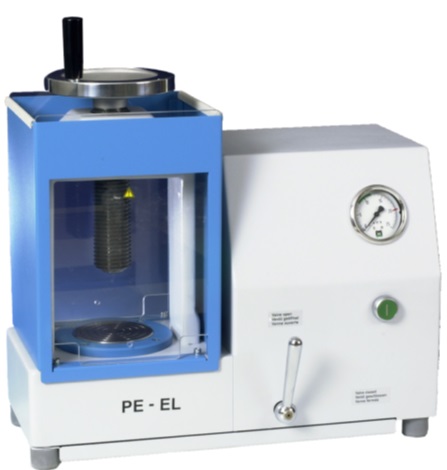

Electrical Press PEEL


  • Compact benchtop machine for X-ray and IR sample pelletizing
  • Simple, one-button operation and maintenance free
  • Convenient wide space for die set positioning and removal
  • Custom designed with adjustable pressure up to 200 kN
  • Robust construction and solid steel housing
  • Secure working chamber with removable safety windows
Get a quote Download PDF Accessories and
Consumables

Technical specifications

Available pressure 200 kN (20 t, metric)
Dimensions (W x H x D) 470 x 500 x 190 mm
Mass approx 50 kg
Height between spindle and piston max. 175 mm
Width between supporting columns max. 130 mm
Spindle adjusting range 120 mm
Available piston stroke 20 mm
Volume of hydraulic oil approx. 3 l
Power supply 230 V, 50/60 Hz, 600 VA
